1. Base
Steel paste with 13mm thickness.
2. Internal or External Floor Box
3. PU Cushion
4. Front Cover
5. Unit Box
The unit box can be rotated 65-degrees,suit for left-hand and right-hand dentists operation.
6. Tool Tray
Intelligent key-touch control system
7. Assistant Tray
Intelligent key-touch assistant control system
8. Silicone Pad For Tool Tray
Silicone pad which is autoclavable, its maximum bearing temperature is 135℃.
9. Silicone Pad for Assistant Tray
Silicone pad which is autoclavable, its maximum bearing temperature is 135℃.
10. Rotary Handpiece Holder
360-degrees rotary handpiece holder
11. Suction Holder
New type strong and weak suction holder

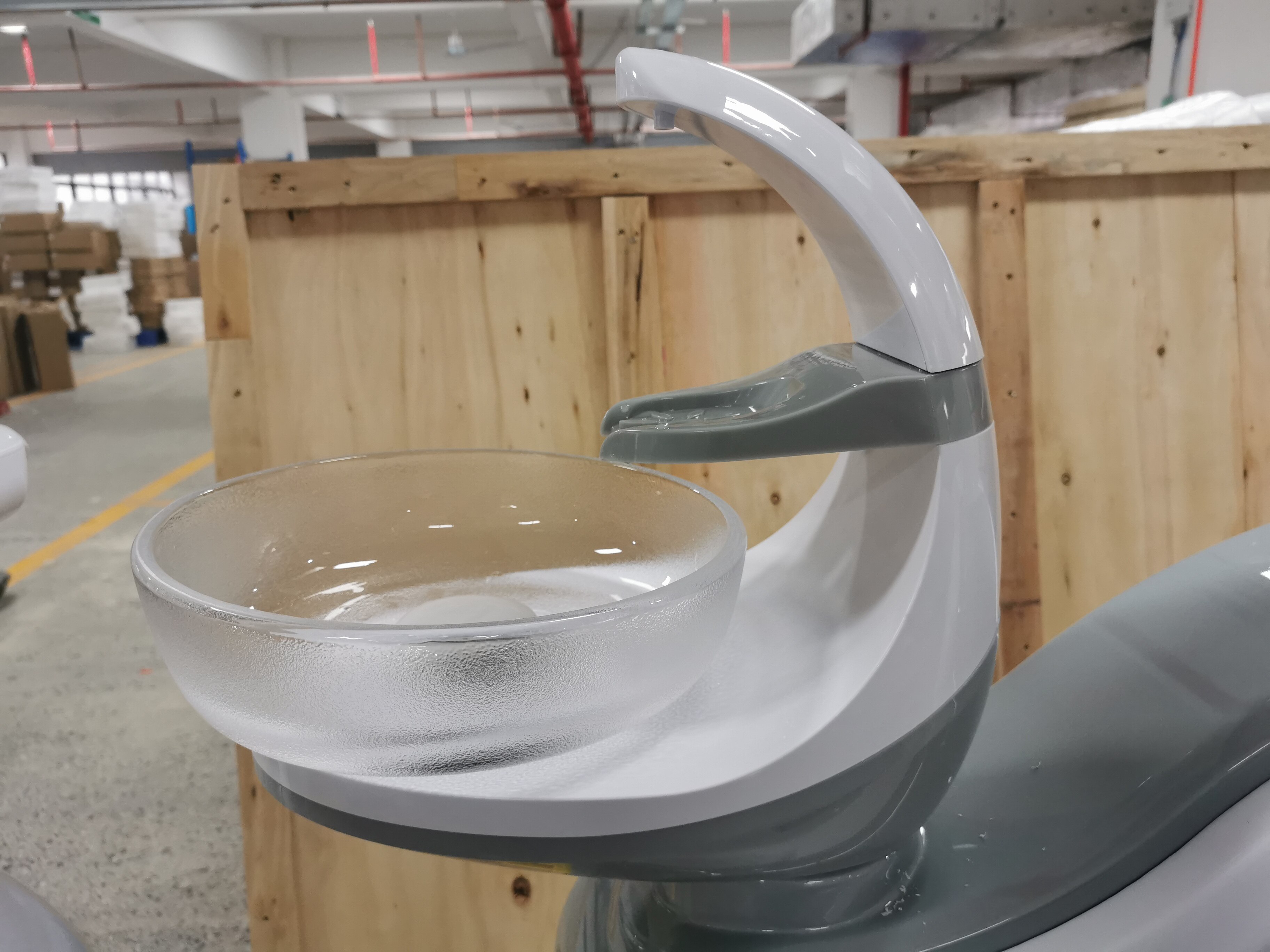

12. Glass Cuspdor
Glass cuspidor, with 180 degrees rotation.
13. LED Operation Lamp
New sensor LED lamp with write and yellow color light,the handle can be removed for disinfection and the lamp is with 360-degrees rotation.
14.Tubes
15. Foot Pedal
Mutil-function foot pedal
Standard Specification:
- 4 hole high-speed handpiece tubing with connector 2 sets
- 4 hole low-speed handpiece tubing with connector 1 set
- 3-way syringe (cold and hot) 2 piece
- Adjustable headrest 1 set
- Double armrest 1 set
- Down tray with touch control 1 set
- With autoclavable silicone pad,maximum bearing temperature is 135-degrees 1pcs
- 5-posistion for handpiece,syringe and scaler 1set
- Suction and saliva ejector 1 set each
- LED operation lamp with sensor CX-9000 1 set
- American style lamp arm 1set
- Build-in model Lcd X-film viewer 1 set
- 24V DC motors 1 set
- Assistant tray with touch control 1 set
- Water purified system 1 set
- Water heating system 1 set
- Water bottle 1000ml 1 pcs
- Auto water supply and flush cuspidor system 1 set each
- Glass cuspidor with 180-degrees rotation 1 set
- Multi-function foot pedal CX-106 1 set
- Dentist stool 1set
- PU cushion 1 set
- Solenoid valve 2 pcs
- ABS plastic covers 1 set

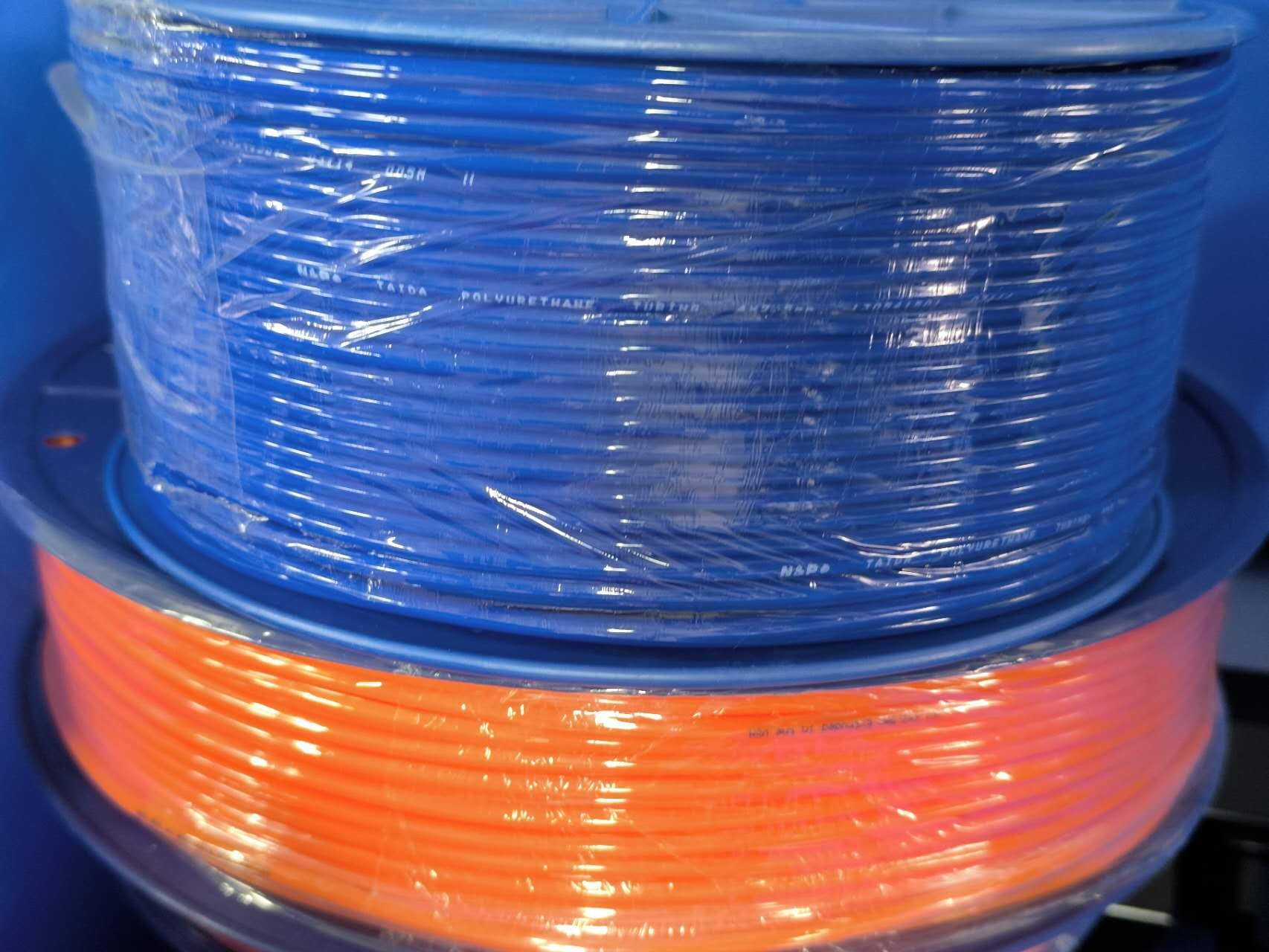

- Imported air and water tubes 1set
- All kinds of copper valves 1set
- Gross Weight: 240KG
- Packing size: 142*100*120CM
Technical Specification:
-
Power supply: AC220V
-
Frequency: 50Hz
-
Input power: 680VA
-
Maximum carrying capacity: 135KG
-
Headrest telescopic range: 120mm
-
Backrest backward range: 115~180 degrees
-
The highest height of cushion from the ground: 780mm
-
The lowest height of cushion from the ground: 400mm
