Zetin Porcelian Furnace
In Stock
Rs . 490,000.00 Rs .470,000.00

Read more

Brand: Zetin
Categories: Equipment
Tags:
SKU: #1434
Wishlist Added To Wishlist
Share:

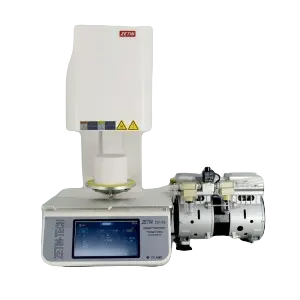

Zetin Porcelain Furnace

ZTCF-20B:

The temperature control of Zetin Porcelain Furnace is accurate, the internal temperature of the furnace is even, the automatic lifting tray design has good sealing performance, and it is equipped with a low-noise oil-free vacuum pump. Zetin Porcelain Furnace is suitable for all kinds of porcelain powder on the market, such as IVOCLAR, VITA, NORITAKE, etc.

Features:

  • Using heating evenly, no pollution, and long service life heating wire;
  • Can store 100 programs, including programs for  IVOCLAR, VITA, and NORITAKE, you can choose existing programs or set up other programs;
  • PID intelligent temperature control system accurately controls the temperature. The temperature accuracy is ±1℃;
  • Highly sensitive sensor, the measured vacuum value is more accurate;
  • Long service life,  low-noise, oil-free vacuum pump, don’t  need  to maintain;
  • Large color touch screen displays all the parameters and is convenient to modify the parameters;
  • Unique vacuum pipeline filtration design improves the service life of internal components;
  • Green environmental thermal insulation materials with excellent performance make the temperature more stable.

Notice:

  • The new furnace needs to use the No.32 program operates 5 times, then can officially use it to work.
  • When you change the program value, the temperature when the vacuum is released must be less than or equal to the max temperature.

Video:



Technical Parameters

Max.Temperature

1300℃

Max.Vacuum

-98Kpa

Heating Rate

≤140℃/min

Temperature Accuracy

±1℃

Power

1600W

Voltage

220V,  50/60HZ

Chamber Size

Ø100mm*70mm

Size

380*320*610 mm ( L*W*H )

Total Program No.

100 programs (Can extend to 500 programs )

Net Weight

21 KG
