KNEE CONTROL TYPE l There is a desktop type that is controlled with a hand dial or foot pedal, and a type that is controlled with a knee by putting the tongue on the lower side of the work desk. The knee control type can respond sensitively to speed changes, so it is useful for detailed work.
AUTO-CRUISE FUNTION l After setting the foot mode, if the foot (knee) pedal is maintained at a constant speed for 2 seconds, the Auto cruise mode is operated. Auto cruise mode is disengaged by pressing the pedal again or pressing the button again.
3.Foot pedal 3.Handpiece stand

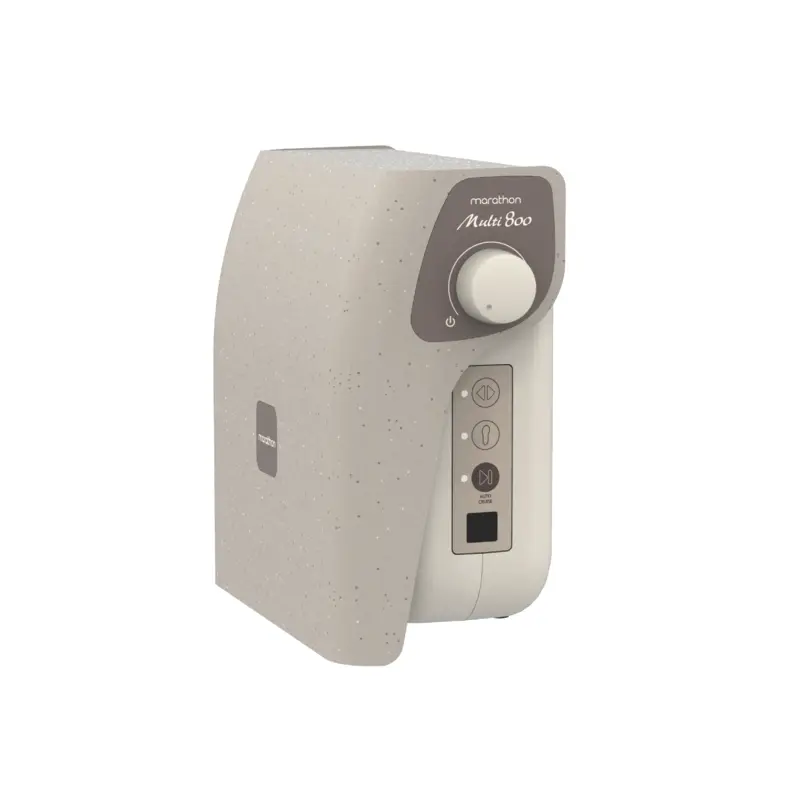

| MODEL | MULTI 800 (Control unit) |
MODEL | SDE-BS50C (Handpiece) |
|---|---|---|---|
| INPUT | 100V-120V~,50/60Hz 220V-240V~,50/60Hz |
SPEED | 1,000-50,000 rpm |
| WEIGHT | 2.230g | TORQUE | 7.6 Ncm |
| DIMENSION | W82.5 x D225 x H202.5 | WEIGHT | 215g |
|
DIMENSION |
Ø27 x L160 |
| MODEL | SDE-BS50C |
|---|---|
| SPEED | 1,000-50,000 rpm |
| MAX.TORQUE | 7.6Ncm |
| WEIGHT | 215 g |
| DIMENSION | L160 x Ø27 |
